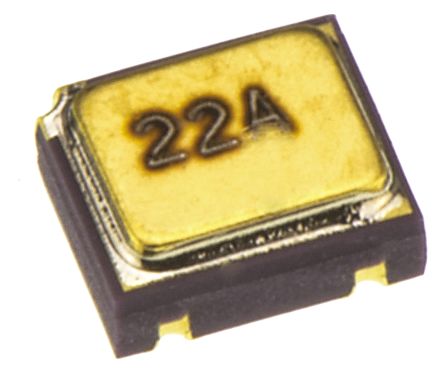

Semelab 2N2222ACSM NPN Transistor, 800 mA, 40 V, 3-Pin LCC 1 [2N2222ACSM]; 177-5495
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 800 mA |
| Maximum Collector Emitter Voltage | 40 V |
| Package Type | LCC 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 500 mW |
| Minimum DC Current Gain | 50 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 75 V |
| Maximum Emitter Base Voltage | 6 V |
| Maximum Operating Frequency | 250 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Length | 3.05mm |
| Maximum Collector Emitter Saturation Voltage | 1 V |
| Maximum Base Emitter Saturation Voltage | 2 V |
| Width | 2.54mm |
| Maximum Operating Temperature | +200 °C |
| Height | 1.4mm |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 3.05 x 2.54 x 1.4mm |
