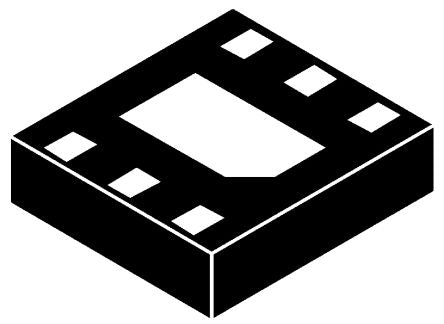

Semtech RCLAMP0504PATCT, 9-Element Uni-Directional TVS Diode, 150W, 6-Pin SLP1616P6 [RCLAMP0504PATCT]; 146-0610
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 25V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SLP1616P6 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 6 |
| Peak Pulse Power Dissipation | 150W |
| Maximum Peak Pulse Current | 6A |
| ESD Protection | Yes |
| Number of Elements per Chip | 9 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| ESD Voltage | 8kV |
| Working Voltage | 5V |
| Dimensions | 1.7 x 1.7 x 0.6mm |
| Capacitance | 3pF |
| Length | 1.7mm |
| Maximum Reverse Leakage Current | 3µA |
| Test Current | 1mA |
| Width | 1.7mm |
| Height | 0.6mm |
