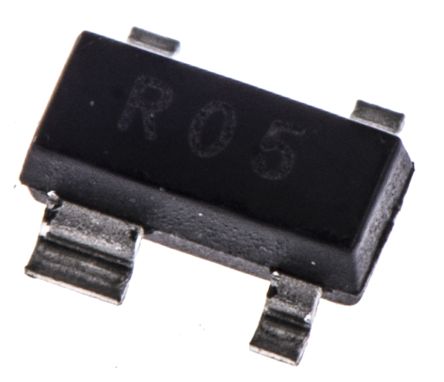

Semtech SR05.TCT, Uni-Directional TVS Diode Array, 500W, 4-Pin SOT-143 [SR05.TCT]; 691-0868
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 20V |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | SOT-143 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 4 |
| Peak Pulse Power Dissipation | 500W |
| Maximum Peak Pulse Current | 25A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 3.04mm |
| Width | 1.4mm |
| Maximum Reverse Leakage Current | 5µA |
| Height | 1.07mm |
| Test Current | 1mA |
| Dimensions | 3.04 x 1.4 x 1.07mm |
