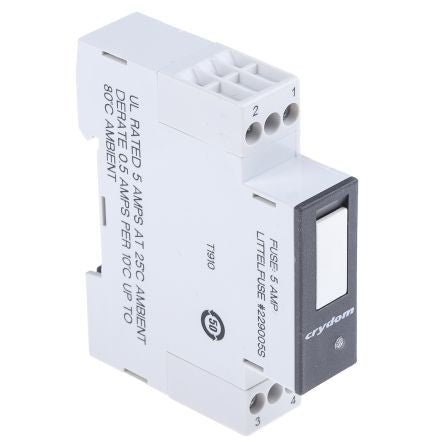

Sensata / Crydom 5 Arms Solid State Relay, Zero Crossing, DIN Rail, 280 V ac Maximum Load [84130105]; 145-0529
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 50 mArms |
| Maximum Load Current | 5 Arms |
| Series | GMS |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 12 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Terminal Type | Screw |
| Maximum Turn On Time | 8.33 ms |
| Dimensions | 17.5 x 65 x 81mm |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -30 → +80°C |
| Capacitance | 6pF |
| Depth | 65mm |
| Length | 17.5mm |
| Control Voltage Range | 4 → 32 V dc |
| Minimum Operating Temperature | -30°C |
| Off State Leakage Current | 0.1 mArms |
| Special Features | Barrier Strips Accept 14 to 28 AWG Wire, Industry standard Color Coding Black (AC Output) Red (DC Output) |
| Height | 81mm |
| Number of Poles | 1 |
| Standards Met | CE, CUL Recognised E46203, UL Recognised E46203 |
| Load Voltage Range | 12 → 280V ac |
| Relay Type | Solid State Relay |
