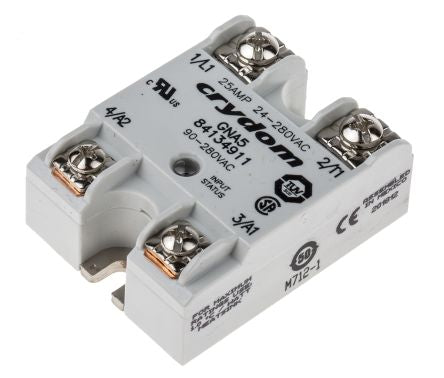

Sensata / Crydom 25 Arms Solid State Relay, Zero Voltage Turn-On, Panel Mount, Triac, 280 V ac Maximum Load [84134911]; 170-7325
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 mA rms |
| Maximum Load Current | 25 A rms |
| Mounting Type | Panel Mount |
| Series | GNA5 |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 90 V ac |
| Maximum Control Voltage | 280 V ac |
| Switching Type | Zero Voltage Turn-On |
| Terminal Type | Screw |
| Output Device | TRIAC |
| Maximum Turn On Time | 20 ms |
| Dimensions | 44.5 x 22.6 x 57.3mm |
| Load Voltage Range | 24 → 280V ac |
| Control Voltage Range | 90 → 280 V ac |
| Operating Temperature Range | -40 → +80°C |
| Length | 44.5mm |
| Off State Leakage Current | 0.1 mArms |
| Capacitance | 8pF |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Height | 57.3mm |
| Relay Type | Solid State Relay |
| Depth | 22.6mm |
| Special Features | LED Input Status Indicator |
