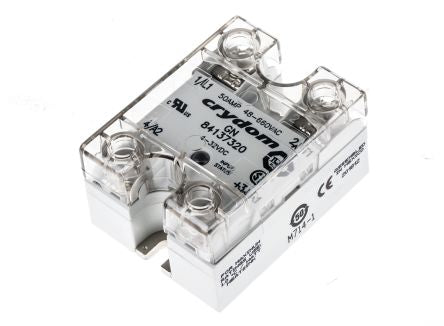

Sensata / Crydom 50 Arms Solid State Relay, Instantaneous Turn-On, Panel Mount, Triac, 660 V ac Maximum Load [84137320]; 170-7334
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 mA rms |
| Maximum Load Current | 50 A rms |
| Series | GN |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 660 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Instantaneous Turn-On |
| Terminal Type | Screw |
| Output Device | TRIAC |
| Maximum Turn On Time | 1/2 ms |
| Dimensions | 44.5 x 30.9 x 57.3mm |
| Minimum Operating Temperature | -40°C |
| Relay Type | Solid State Relay |
| Special Features | LED Input Status Indicator |
| Depth | 30.9mm |
| Load Voltage Range | 48 → 660V ac |
| Control Voltage Range | 3 → 32 V dc |
| Operating Temperature Range | -40 → +80°C |
| Length | 44.5mm |
| Off State Leakage Current | 0.25 mArms |
| Maximum Operating Temperature | +80°C |
| Capacitance | 8pF |
| Height | 57.3mm |
