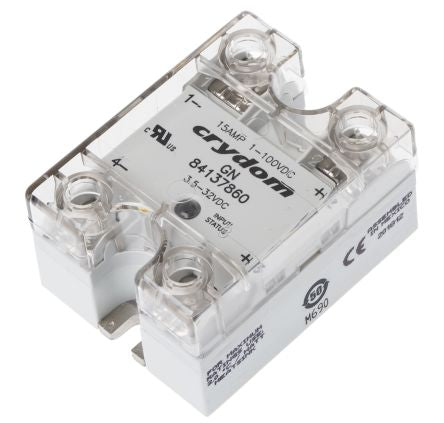

Sensata / Crydom 15 A Solid State Relay, Zero Voltage Turn-On, Panel Mount, MOSFET, 100 V dc Maximum Load [84137860]; 170-7335
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.1 mA |
| Maximum Load Current | 15 A |
| Mounting Type | Panel Mount |
| Series | GN |
| Minimum Load Voltage | 1 V dc |
| Maximum Load Voltage | 100 V dc |
| Minimum Control Voltage | 5 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Voltage Turn-On |
| Terminal Type | Screw |
| Output Device | MOSFET |
| Maximum Turn On Time | 75 μs |
| Dimensions | 44.5 x 30.9 x 57.3mm |
| Depth | 30.9mm |
| Special Features | LED Input Status Indicator |
| Load Voltage Range | 1 → 100V dc |
| Relay Type | Solid State Relay |
| Operating Temperature Range | -40 → +100°C |
| Length | 44.5mm |
| Off State Leakage Current | 0.1 mArms |
| Control Voltage Range | 5 → 32 V dc |
| Maximum Operating Temperature | +100°C |
| Height | 57.3mm |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
