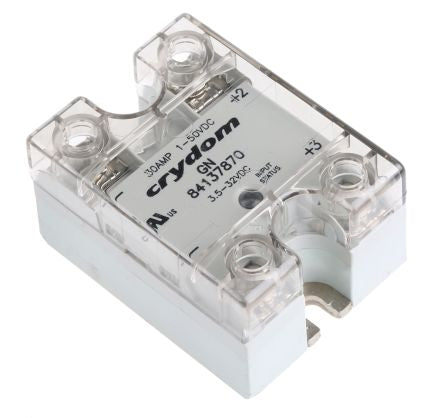

Sensata / Crydom 30 A dc Solid State Relay, Zero Crossing, Panel Mount, MOSFET, 50 V dc Maximum Load [84137870]; 145-0545
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.1 mA |
| Maximum Load Current | 30 A dc |
| Range | Easy Pick |
| Series | 8413 |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 1 V dc |
| Maximum Load Voltage | 50 V dc |
| Minimum Control Voltage | 3.5 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Terminal Type | Screw |
| Output Device | MOSFET |
| Maximum Turn On Time | 75 μs |
| Dimensions | 44.5 x 57.3 x 22.6mm |
| Capacitance | 8pF |
| Depth | 57.3mm |
| Length | 44.5mm |
| Maximum Operating Temperature | +100°C |
| Control Voltage Range | 3.5 → 32 V dc |
| Operating Temperature Range | -40 → +100°C |
| Standards Met | CE, CULus Recognised E46203, EN 60950-1, UL |
| Special Features | Improved SEMS Screw & Washer, IP00, LED Input Status Indicator, Redesigned Housing with Anti-Rotation Barriers |
| Off State Leakage Current | 0.1 mArms |
| Number of Poles | 1 |
| Relay Type | Solid State Relay |
| Load Voltage Range | 1 → 50V dc |
| Minimum Operating Temperature | -40°C |
| Height | 22.6mm |
