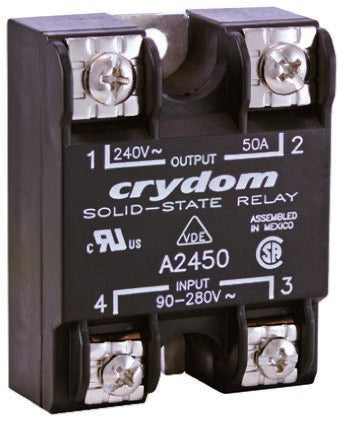

Sensata / Crydom 50 A SPST Solid State Relay, Instantaneous, Panel Mount, SCR, 280 V rms Maximum Load [A2450-10]; 736-0826
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 40 mA rms |
| Maximum Load Current | 50 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 90 V ac |
| Maximum Control Voltage | 280 V ac |
| Switching Type | Instantaneous |
| Contact Configuration | SPST |
| Terminal Type | Screw |
| Output Device | SCR |
| Maximum Turn On Time | 10 ms |
| Dimensions | 45.7 x 19.8 x 58.4mm |
| Maximum Operating Temperature | +80°C |
| Control Voltage Range | 90 → 280 V ac |
| Load Voltage Range | 24 → 280Vrms |
| Minimum Operating Temperature | -40°C |
| Height | 58.4mm |
| Operating Temperature Range | -40 → +80°C |
| Length | 45.7mm |
| Off State Leakage Current | 10 mA rms |
| Depth | 19.8mm |
