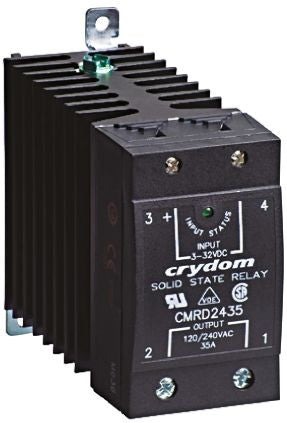

Sensata / Crydom 45 A SPST Solid State Relay, Zero Cross, DIN Rail, SCR, 280 V Maximum Load [CMRD2445]; 291-2983
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.15 A |
| Maximum Load Current | 45 A |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 280 V |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V |
| Switching Type | Zero Cross |
| Contact Configuration | SPST |
| Terminal Type | Screw |
| Output Device | SCR |
| Dimensions | 109 x 44.5 x 76.2mm |
| Height | 76.2mm |
| Minimum Operating Temperature | -40°C |
| Off State Leakage Current | 10 mA rms |
| Maximum Operating Temperature | +80°C |
| Length | 109mm |
| Depth | 44.5mm |
| Control Voltage Range | 3 → 32 V dc |
| Load Voltage Range | 24 → 280V ac |
| Operating Temperature Range | -40 → +80°C |
