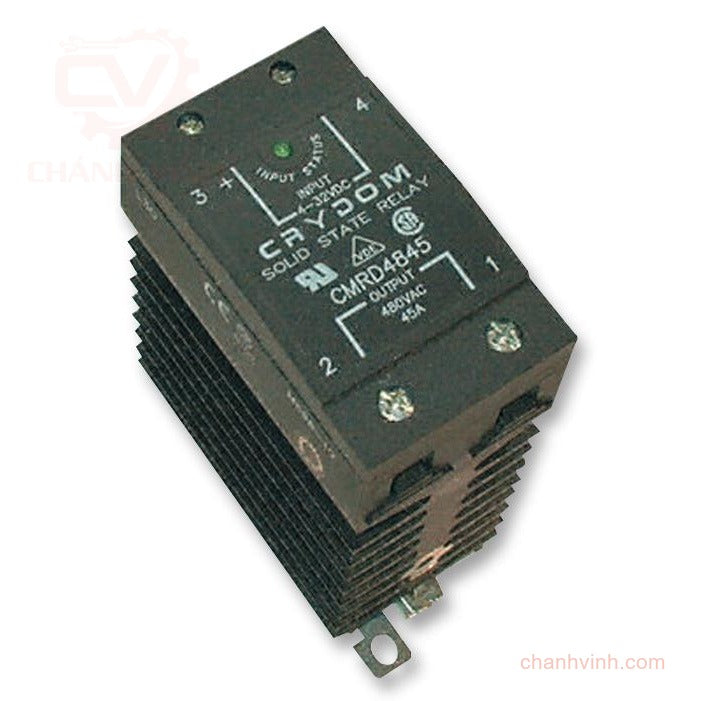

SENSATA / CRYDOM Relay: solid state; Ucntrl: 3÷32VDC; 45A; 48÷530VAC; CMR48; 1-phase [CMRD4845]
CMRD/A Series, 240/480/600Vac, ac O/P SSRs Zero Voltage Switching Random Turn-on (55A 240V a.c. only) SCR Output SPST-NO Contact arrangement Integral heatsink and DIN rail clip LED Status Indicator Integral safety cover which provides a fingerproof solution Dimensions: H109.2 x W44.5 x D76.2mm Caged terminals (Rising Clamp) 8pF Input-Output Capacitance Note Integral heatsink and DIN rail clip included Caution Derating will limit the maximum load current at temperatures above 25 °C Approvals UL; CSA; VDE Approvals UL E116950; CSA LR81689; VDE 126921 UG; CE; ISO Zero Voltage Relays Note Temperature can affect current rating; please consult the data sheet for potential derating.
CMRD/A Series, 240/480/600Vac, ac O/P SSRs
Zero Voltage Switching
Random Turn-on (55A 240V a.c. only)
SCR Output
SPST-NO Contact arrangement
Integral heatsink and DIN rail clip
LED Status Indicator
Integral safety cover which provides a fingerproof solution
Dimensions: H109.2 x W44.5 x D76.2mm
Caged terminals (Rising Clamp)
8pF Input-Output Capacitance
Note
Integral heatsink and DIN rail clip included
Caution
Derating will limit the maximum load current at temperatures above 25 °C
Approvals
UL; CSA; VDE
Approvals
UL E116950; CSA LR81689; VDE 126921 UG; CE; ISO
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
