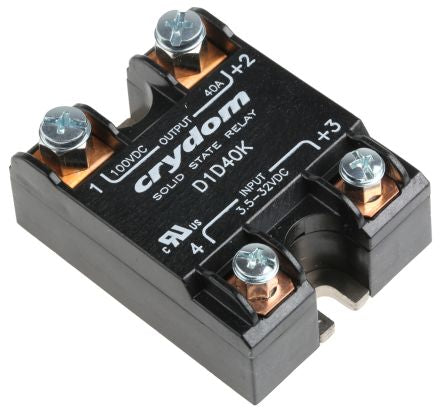

Sensata / Crydom 40 A dc Solid State Relay, Panel Mount, MOSFET, 100 V dc Maximum Load [D1D40K]; 145-0573
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 1 mA |
| Maximum Load Current | 40 A dc |
| Mounting Type | Panel Mount |
| Series | 1-DC |
| Minimum Load Voltage | 1 V dc |
| Maximum Load Voltage | 100 V dc |
| Minimum Control Voltage | 3.5 V dc |
| Maximum Control Voltage | 32 V dc |
| Terminal Type | Screw |
| Output Device | MOSFET |
| Maximum Turn On Time | 100 μs |
| Dimensions | 44.5 x 57.3 x 22.6mm |
| Maximum Operating Temperature | +100°C |
| Control Voltage Range | 3.5 → 32 V dc |
| Length | 44.5mm |
| Depth | 57.3mm |
| Capacitance | 8pF |
| Load Voltage Range | 1 → 100V dc |
| Standards Met | CE, CULus Recognised E116950, EMC Compliant, EN 60950-1, IEC, IEC 61000-4-2, IEC 61000-4-4, UL, UL 94 V-0 |
| Minimum Operating Temperature | -40°C |
| Height | 22.6mm |
| Special Features | DC Control, Epoxy-Free Design, Improved SEMS Screw & Washer, Redesigned Housing with Anti-Rotation Barriers |
| Operating Temperature Range | -40 → +100°C |
| Number of Poles | 1 |
| Relay Type | Solid State Relay |
| Off State Leakage Current | 0.3 mA |
