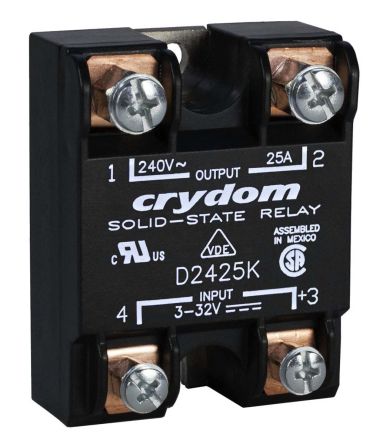

Sensata / Crydom 25 Arms Solid State Relay, Zero Crossing, Panel Mount, SCR, 280 V dc Maximum Load [D2425K]; 145-0575
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA rms |
| Maximum Load Current | 25 A rms |
| Series | 1 |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V dc |
| Maximum Load Voltage | 280 V dc |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Crossing |
| Terminal Type | Screw |
| Output Device | SCR |
| Maximum Turn On Time | 1/2 cycles |
| Dimensions | 44.5 x 57.3 x 26.4mm |
| Control Voltage Range | 4 → 32 V dc |
| Load Voltage Range | 24 → 280V ac |
| Depth | 57.3mm |
| Operating Temperature Range | -40 → +80°C |
| Length | 44.5mm |
| Off State Leakage Current | 1 mArms |
| Maximum Operating Temperature | +80°C |
| Capacitance | 8pF |
| Height | 26.4mm |
| Special Features | AC or DC Control, Direct Bond Copper Substrate, Direct Power Lead Frame, Epoxy-Free Design, Improved SEMS Screw & Washer, Redesigned Housing with Anti-Rotation Barriers |
| Standards Met | CE, CSA LR 81689, CULus Recognised E116949, EN 60950-1, IEC, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-4, IEC 62314, UL, VDE Approved 10143 UG |
| Minimum Operating Temperature | -40°C |
| Number of Poles | 1 |
| Relay Type | Solid State Relay |
