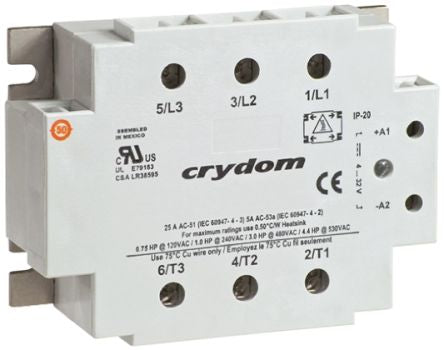

Sensata / Crydom 25 A rms Solid State Relay, Instantaneous, Panel Mount, SCR, 530 V rms Maximum Load [D53TP25C-10]; 720-3925
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.1 A rms |
| Maximum Load Current | 25 A rms |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 48 V rms |
| Maximum Load Voltage | 530 V rms |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Instantaneous |
| Terminal Type | Screw |
| Output Device | SCR |
| Maximum Turn On Time | 0.02 ms |
| Dimensions | 101.3 x 35.4 x 79.7mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Control Voltage Range | 4 → 32 V dc |
| Depth | 35.4mm |
| Load Voltage Range | 48 → 530Vrms |
| Operating Temperature Range | -40 → +80°C |
| Length | 101.3mm |
| Height | 79.7mm |
| Off State Leakage Current | 3 mA rms |
