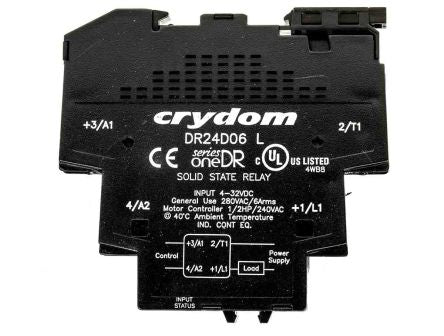

Sensata / Crydom 6 A rms Solid State Relay, Zero Cross, DIN Rail, 280 V rms Maximum Load [DR24D06]; 720-4098
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.15 A rms |
| Maximum Load Current | 6 A rms |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 24 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Terminal Type | Screw |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 83.7 x 11 x 90.3mm |
| Operating Temperature Range | -30 → +80°C |
| Load Voltage Range | 24 → 280Vrms |
| Depth | 11mm |
| Maximum Operating Temperature | +80°C |
| Control Voltage Range | 4 → 32 V dc |
| Off State Leakage Current | 0.1 mA rms |
| Length | 83.7mm |
| Height | 90.3mm |
| Minimum Operating Temperature | -30°C |
