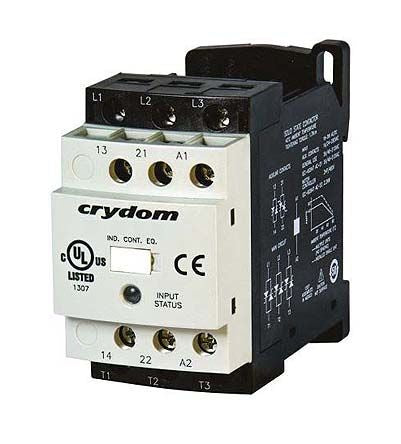

Sensata / Crydom 5 A SPDT Solid State Relay, AC/DC, DIN Rail, 530 Vrms Maximum Load [DRC3P48D433R]; 144-5969
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.15 A rms |
| Maximum Load Current | 0.208333333333333 |
| Series | DRC |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 48 Vrms |
| Maximum Load Voltage | 530 Vrms |
| Minimum Control Voltage | 18 V ac/dc |
| Maximum Control Voltage | 30 V ac/dc |
| Switching Type | AC/DC |
| Contact Configuration | SPDT |
| Terminal Type | Screw |
| Maximum Turn On Time | 20 ms |
| Dimensions | 45.3 x 95.6 x 86.7mm |
| Depth | 95.6mm |
| Special Features | LED Input Status Indicator, Load Voltage Range Upto 600 V ac, 7.6 Amp AC Semiconductor Motor Controller |
| Standards Met | CE, CSA C22.2 No. 14, CULus, IEC, IEC 61000-6-2, UL 508 |
| Relay Type | Solid State Relay |
| Number of Poles | 3 |
| Minimum Operating Temperature | -20°C |
| Load Voltage Range | 48 → 530Vrms |
| Control Voltage Range | 18 → 30 V ac/dc |
| Height | 86.7mm |
| Operating Temperature Range | -20 → +60°C |
| Capacitance | 20pF |
| Length | 45.3mm |
| Maximum Operating Temperature | +60°C |
| Off State Leakage Current | 3 mArms |
