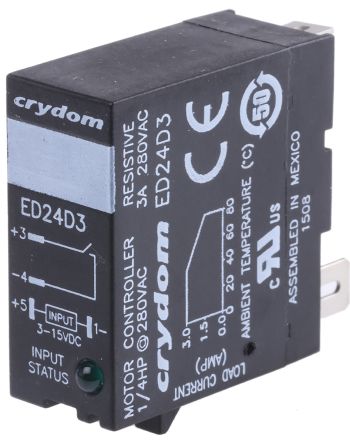

Sensata / Crydom 3 A SPST Solid State Relay, Zero Cross, DIN Rail, 280 V rms Maximum Load [ED24D3]; 740-1346
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 0.125 |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 24 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 15 V dc |
| Switching Type | Zero Cross |
| Contact Configuration | SPST |
| Terminal Type | Through Hole |
| Package Style | EMR |
| Maximum Turn On Time | 8.33 ms |
| Dimensions | 29 x 12.7 x 37.4mm |
| Load Voltage Range | 24 → 280Vrms |
| Height | 37.4mm |
| Depth | 12.7mm |
| Maximum Operating Temperature | +80°C |
| Off State Leakage Current | 0.1 mA rms |
| Length | 29mm |
| Operating Temperature Range | -30 → +80°C |
| Minimum Operating Temperature | -30°C |
| Control Voltage Range | 3 → 15 V dc |
