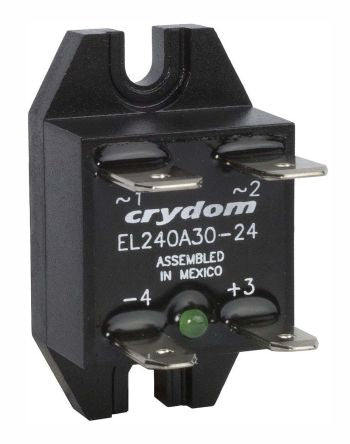

Sensata / Crydom 30 A dc Solid State Relay, Instantaneous, Panel Mount, 280 V ac Maximum Load [EL240A30R-24]; 145-0593
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 250 mA rms |
| Maximum Load Current | 30 A dc |
| Series | EL |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 24 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 21 V dc |
| Maximum Control Voltage | 27 V dc |
| Switching Type | Instantaneous |
| Terminal Type | Pad |
| Maximum Turn On Time | 1/2 cycles |
| Dimensions | 36.6 x 21.1 x 14.3mm |
| Capacitance | 8pF |
| Height | 14.3mm |
| Minimum Operating Temperature | -30°C |
| Number of Poles | 1 |
| Relay Type | Solid State Relay |
| Standards Met | CE, CSA C22.2 No. 14, CULus Recognised E116950, EMC Compliant, EN 62314:2006, IEC 60335-1, IEC 61373, TUV, UL, UL Recognised |
| Special Features | LED Input Status Indicator |
| Depth | 21.1mm |
| Load Voltage Range | 24 → 280V ac |
| Control Voltage Range | 21 → 27 V dc |
| Operating Temperature Range | -30 → +80°C |
| Length | 36.6mm |
| Maximum Operating Temperature | +80°C |
| Off State Leakage Current | 0.1 mArms |
