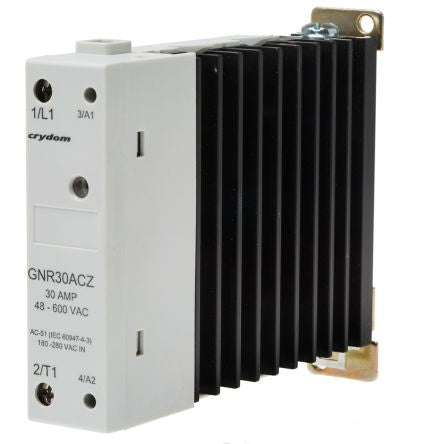

Sensata / Crydom 30 Arms Solid State Relay, Zero Voltage Turn-On, DIN Rail, Triac, 260 V ac Maximum Load [GNR30ACZ]; 170-7346
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 mA rms |
| Maximum Load Current | 30 A rms |
| Mounting Type | DIN Rail |
| Series | GNR 22.5 |
| Minimum Load Voltage | 180 V ac |
| Maximum Load Voltage | 260 V ac |
| Minimum Control Voltage | 180 V ac |
| Maximum Control Voltage | 280 V ac |
| Switching Type | Zero Voltage Turn-On |
| Terminal Type | Screw |
| Output Device | TRIAC |
| Maximum Turn On Time | 20 ms |
| Dimensions | 22.5 x 120.8 x 97.8mm |
| Operating Temperature Range | -20 → +80°C |
| Load Voltage Range | 180 → 260V ac |
| Length | 22.5mm |
| Depth | 120.8mm |
| Off State Leakage Current | 0.1 mArms |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -20°C |
| Capacitance | 8pF |
| Control Voltage Range | 180 → 280 V ac |
| Height | 97.8mm |
| Relay Type | Solid State Relay |
| Special Features | Direct Bond Copper (DBC) Substrate, LED Input Status Indicator |
| Standards Met | CE, CSA, UL |
