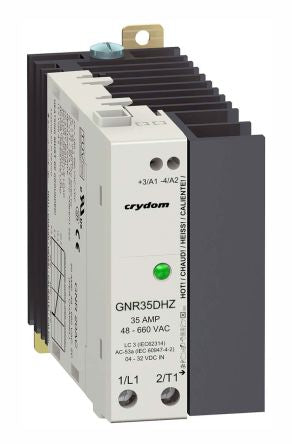

Sensata / Crydom 35 Arms Solid State Relay, Zero Crossing, DIN Rail, 600 Vrms Maximum Load [GNR35ACZ]; 145-0554
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.1 A rms |
| Maximum Load Current | 35 Arms |
| Series | GNR |
| Mounting Type | DIN Rail |
| Minimum Load Voltage | 48 Vrms |
| Maximum Load Voltage | 600 Vrms |
| Minimum Control Voltage | 180 V ac |
| Maximum Control Voltage | 260 V ac |
| Switching Type | Zero Crossing |
| Terminal Type | Screw |
| Maximum Turn On Time | 30 ms |
| Dimensions | 123.4 x 120.7 x 88.1mm |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +80°C |
| Length | 123.4mm |
| Off State Leakage Current | 0.25 mArms |
| Maximum Operating Temperature | +80°C |
| Capacitance | 8pF |
| Height | 88.1mm |
| Special Features | Built-In Overvoltage Protection, Direct Bond Copper Substrate, LED Input Status Indicator |
| Number of Poles | 1 |
| Relay Type | Solid State Relay |
| Control Voltage Range | 180 → 260 V ac |
| Standards Met | CE, CSA, UL |
| Load Voltage Range | 48 → 600Vrms |
| Depth | 120.7mm |
