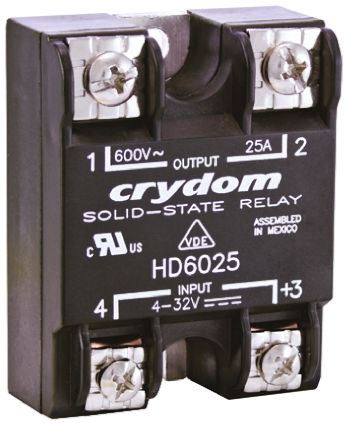

Sensata / Crydom 25 A SPST Solid State Relay, Zero Cross, Panel Mount, SCR, 660 V ac Maximum Load [HD6025P]; 736-0927
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 40 mA rms |
| Maximum Load Current | 25 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 48 V ac |
| Maximum Load Voltage | 660 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Contact Configuration | SPST |
| Terminal Type | Screw |
| Output Device | SCR |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 45.7 x 19.8 x 58.4mm |
| Minimum Operating Temperature | -40°C |
| Load Voltage Range | 48 → 660V ac |
| Maximum Operating Temperature | +80°C |
| Control Voltage Range | 3 → 32 V dc |
| Depth | 19.8mm |
| Operating Temperature Range | -40 → +80°C |
| Length | 45.7mm |
| Off State Leakage Current | 5 mA rms |
| Height | 58.4mm |
