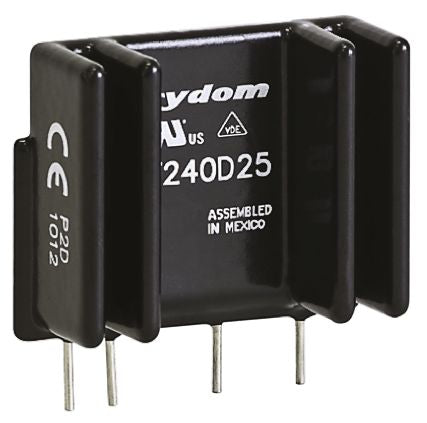

Sensata / Crydom 25 A SPST Solid State Relay, Instantaneous, PCB Mount, SCR, 280 V rms Maximum Load [PF240D25R]; 738-5610
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 0.06 mA rms |
| Maximum Load Current | 25 A |
| Mounting Type | PCB Mount |
| Minimum Load Voltage | 12 V rms |
| Maximum Load Voltage | 280 V rms |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 15 V dc |
| Switching Type | Instantaneous |
| Contact Configuration | SPST |
| Terminal Type | Through Hole |
| Output Device | SCR |
| Package Style | SIP |
| Maximum Turn On Time | 1/2 cycle |
| Dimensions | 43.1 x 22.8 x 34.3mm |
| Load Voltage Range | 12 → 280Vrms |
| Operating Temperature Range | -30 → +80°C |
| Control Voltage Range | 3 → 15 V dc |
| Maximum Operating Temperature | +80°C |
| Depth | 22.8mm |
| Length | 43.1mm |
| Off State Leakage Current | 0.1 mA rms |
| Minimum Operating Temperature | -30°C |
| Height | 34.3mm |
