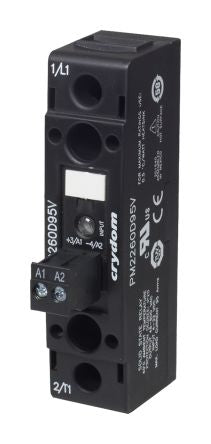

Sensata / Crydom 95 A SP Solid State Relay, Zero Cross, Panel Mount, Triac, 600 V rms Maximum Load [PM2260D95V]; 910-7349
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 150 mA |
| Maximum Load Current | 95 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 48 V rms |
| Maximum Load Voltage | 600 V rms |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Contact Configuration | SP |
| Terminal Type | Screw |
| Output Device | TRIAC |
| Maximum Turn On Time | 1/2 cycles |
| Dimensions | 22.5 x 47.5 x 91.9mm |
| Control Voltage Range | 4 → 32 V dc |
| Depth | 47.5mm |
| Load Voltage Range | 48 → 600Vrms |
| Off State Leakage Current | 1 mA |
| Height | 91.9mm |
| Capacitance | 8pF |
| Number of Poles | 1 |
| Relay Type | Nove 22 Solid State Relay |
| Standards Met | CE |
| Special Features | IP20 Touch Safe Housing, LED Input Status Indicator |
| Length | 22.5mm |
| Operating Temperature Range | -40 → +80°C |
