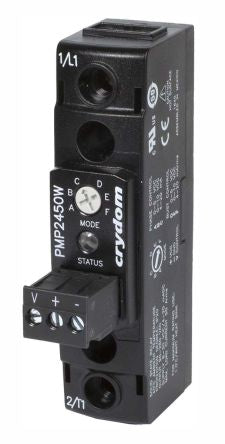

Sensata / Crydom 25 A Solid State Relay, Burst Fire Control, Phase Angle, Panel Mount, 280 V ac Maximum Load [PMP2425W]; 145-0603
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Load Current | 100 mA rms |
| Range | NOVA22 |
| Maximum Load Current | 25 A |
| Mounting Type | Panel Mount |
| Series | PMP |
| Minimum Load Voltage | 90 V ac |
| Maximum Load Voltage | 280 V ac |
| Minimum Control Voltage | 0 V dc |
| Maximum Control Voltage | 5 V dc, 10 V dc |
| Switching Type | Burst Fire Control, Phase Angle |
| Terminal Type | Screw |
| Maximum Turn On Time | 20 cycles |
| Dimensions | 22.5 x 53.1 x 91.9mm |
| Number of Poles | 1 |
| Depth | 53.1mm |
| Standards Met | CE, CSA C22.2 No. 14, CULus Recognised E116949, EMC Compliant, IEC, IEC 60068-2-27, IEC 60068-2-6, UL, UL 94 V-0 |
| Load Voltage Range | 90 → 280V ac |
| Control Voltage Range | 0 → 10 V dc, 0 → 5 V dc |
| Operating Temperature Range | -25 → +70°C |
| Length | 22.5mm |
| Off State Leakage Current | 4 mArms |
| Maximum Operating Temperature | +70°C |
| Special Features | LED Multifunction Status Indicator |
| Relay Type | Control Relay |
| Minimum Operating Temperature | -25°C |
| Height | 91.9mm |
| Capacitance | 8pF |
