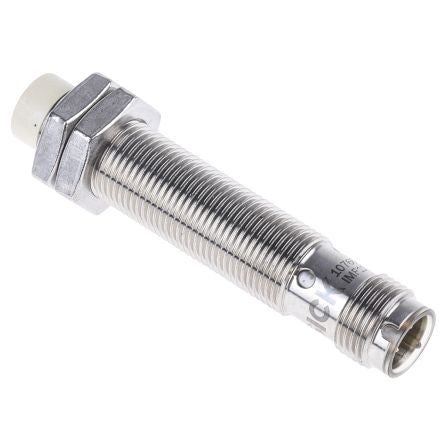

Sick, M12 x 1, PNP-NO/NC Inductive Sensor 65mm Length, 10 → 30 V dc supply voltage , IP68, IP69K Rating [IMF12-08NPPNC0S]; 121-2738
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | PNP-NO/NC |
| Detection Range | 8 mm |
| Terminal Type | M12 - 4 Pin |
| Supply Voltage | 10 → 30 V dc |
| Length | 65mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Non Flush |
| IP Rating | IP68, IP69K |
| Switching Current | 200 mA |
| Housing Material | Stainless Steel, V4A |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2kHz |
| Short Circuit Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +100°C |
| Standards Met | CE Certified, CULus Listed, EN 60947-5-2, FDA, UL E181493 |
| Minimum Operating Temperature | -40°C |
