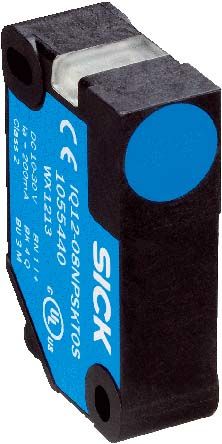

Sick IO-Link PNP-NO/NC Inductive Sensor 12mm Length, 10 → 30 V dc supply voltage , IP68, IP69K Rating [IQC12-04BPPKQ8SA00]; 134-7828
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Block |
| Output Type | PNP-NO/NC |
| Detection Range | 4 mm |
| Terminal Type | M12 - 4 Pin with cable |
| Supply Voltage | 10 → 30 V dc |
| Length | 12mm |
| Communication Protocol | IO-LINK |
| Width | 26mm |
| Depth | 40mm |
| Maximum DC Voltage | 30V |
| Mounting Type | Flush Mount |
| IP Rating | IP68, IP69K |
| Switching Current | 200 mA |
| Interface | IO-Link |
| Housing Material | Stainless Steel |
| Maximum Switching Frequency | 1kHz |
| Shielding | Shielded |
| Minimum Operating Temperature | -40°C |
| Short Circuit Overload Protection | Yes |
| Standards Met | CE, CULus, EN 60529, EN 60947-5-2 |
| Reverse Polarity Protection | Yes |
| Maximum Operating Temperature | +75°C |
