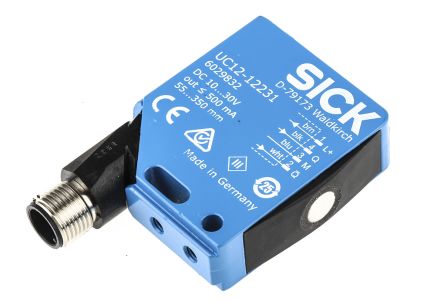

Sick Ultrasonic Sensor Block, 55 → 250 mm, PNP, 4-Pin M12 Connector IP67 [UC12-12231]; 219-077
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 55 → 250 mm |
| Output Type | PNP-NO/NC |
| Body Style | Block |
| Transducer Frequency | 500kHz |
| Maximum DC Voltage | 30V |
| Supply Voltage | 10 → 30 V dc |
| Terminal Type | M12 - 4 Pin |
| IP Rating | IP67 |
| Housing Material | Die Cast Zinc |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Minimum Operating Temperature | -25°C |
| Switching Current | 500 mA |
| Dimensions | 50.5 x 43.5 x 15 mm |
| Switching Frequency | 25 Hz |
| Depth | 15mm |
| Maximum Operating Temperature | +70°C |
| Width | 43.5mm |
| Response Time | 30 ms |
| Length | 50.5mm |
