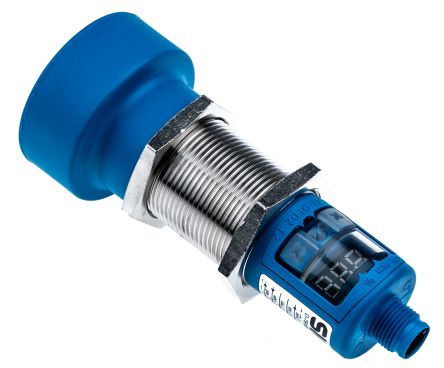

Sick Ultrasonic Sensor Barrel M30 x 1.5, 350 → 3400 mm, Analogue, 5-Pin M12 Connector IP67 [UM30-214113]; 700-2860
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Detection Range | 350 → 3400 mm |
| Output Type | Analogue |
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Transducer Frequency | 120kHz |
| Diameter | 48 mm |
| Maximum DC Voltage | 30V |
| Supply Voltage | 9 → 30 V dc |
| Terminal Type | M12 - 5 Pin |
| IP Rating | IP67 |
| Housing Material | Nickel Plated Brass |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
| Dimensions | 102 x 47.5 mm |
| Length | 102mm |
| Switching Current | 200 mA |
| Response Time | 43 ms |
| Minimum Operating Temperature | -25°C |
| Switching Frequency | 3 Hz |
| Maximum Operating Temperature | +70°C |
