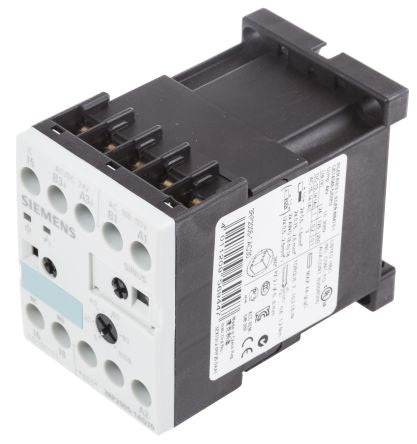

Siemens Multi Function Timer Relay, Screw, 0.05 → 100 h, 0.05 → 100 min, 0.05 → 100 s, SPDT [3RP2005-1AQ30]; 470-7907
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 24 V ac/dc, 100 → 127 V ac |
| Time Range | 0.05 → 100 h, 0.05 → 100 min, 0.05 → 100 s |
| Mode of Operation | Additive ON Delay with Auxiliary Voltage, Flash Start with Interval, OFF Delay with Auxiliary Voltage, ON Delay, ON Delay & OFF Delay with Auxiliary Voltage, Passing Break Contact with Auxiliary Voltage, Passing Make Contact, Pulse Former with Auxiliary V |
| Mounting Type | DIN Rail |
| Number of Timer Functions | Multi Function |
| Number of Contacts | 1 |
| Time Increment | Hours, Minutes, Seconds |
| Power Supply | External |
| Contact Configuration | SPDT |
| Current Maximum | 1 (dc) A, 3 (ac) A |
| Terminal Type | Screw |
| Maximum Voltage | 250 V ac/dc |
| Minimum Operating Temperature | -25°C |
| Depth | 73mm |
| Width | 45mm |
| Length | 57mm |
| Switch Configuration | SPDT |
| Maximum Operating Temperature | +60°C |
