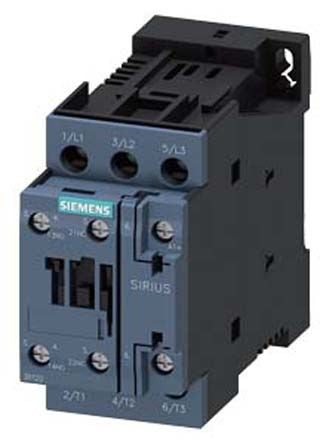

Siemens Overload Relay NO/NC (Auxiliary), 14 A @ 480 V, 17 A @ 600 V, 7.5 kW, 24 V dc [3RT2025-1KB40]; 136-9685
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| FLC Motor Rating | 14 A @ 480 V, 17 A @ 600 V |
| Control Voltage | 24 V dc |
| Contact Current Rating | 10 A @ 230 V (Auxiliary AC-15), 10 A @ 24 V (Auxiliary DC-12), 10 A @ 24 V (Auxillary DC-13), 10 A @ Maximum (Auxiliary AC-12), 17 A @ 400 V (Main AC-2), 17 A @ 400 V (Main AC-3), 35 A @ 24 V (Main DC-1), 40 A @ 690 V (Main AC-1) |
| Pole Configuration | 3P |
| Range | Sirius Innovation |
| Contact Voltage Rating | 400 (Main AC-2) V, 600 (Auxiliary DC-12) V dc, 600 (Auxillary DC-13) V dc, 600 (DC-3 at DC-5) V, 600 (Main DC-1) V, 690 (Auxiliary AC-15) V ac, 690 (Main AC-3) V |
| Mounting Style | DIN Rail Mount |
| Supply Voltage | 24 V dc |
| Series | 3RT2 |
| Normal State Configuration | NO/NC (Auxiliary) |
| Number Of Auxiliary Contacts | 5 |
| Power Rating | 7.5 kW |
| Terminal Type | Screw |
| Length | 45mm |
| Width | 85mm |
| Depth | 107mm |
| Operating Temperature Range | -25 → +60 °C |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
