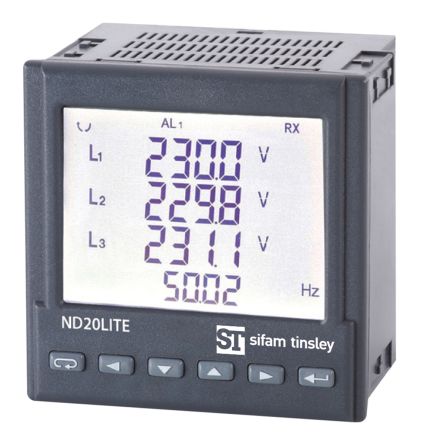

Sifam Tinsley ND20LITE LCD Digital Power Meter, 92.5mm x 92.5mm, 16-Digits, [ND20LITE-22100U0]; 124-5190
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Cutout Height | 92.5mm |
| Cutout Width | 92.5mm |
| Display Type | LCD |
| Number of Digits | 16 |
| Depth | 7.7mm |
| Minimum Temperature | -25°C |
| Maximum Temperature | +55°C |
| Maximum Measurement | 1.2 (Current A @ 1 A), 1.65 (Active Power) kW, 1.65 (Apparent Power) kVA, 1.65 (Reactive Power) kVA, 6 (Current A @ 5 A), 63 (Frequency) Hz, 70 (Voltage L-N V @ 57.7 V), 120 (Voltage L-L V @ 100 V), 276 (Voltage L-N V @ 230 V), 480 (Voltage L-L V @ 400 V) |
| Measurement Range | -1.65 → 1.65 (Active Power) kW, -1.65 → 1.65 (Reactive Power) kVA, 0.002 → 1.2 (Current A @ 1 A), 0.010 → 6 (Current A @ 5 A), 1.4 VA → 1.65 kVA (Apparent Power), 2.8 → 70 (Voltage L-N V @ 57.7 V), 5 → 120 (Voltage L-L V @ 100 V), 11.5 → 276 (Voltage L-N V @ 230 V), 20 → 480 (Voltage L-L V @ 400 V), 47 → 63 (Frequency) Hz |
| Meter Type | Electrical |
| Minimum Measurement | -1.65 (Active Power) kW, -1.65 (Reactive Power) kVA, 0.002 (Current A @ 1 A), 0.010 (Current A @ 5 A), 1.4 (Apparent Power) VA, 2.8 (Voltage L-N V @ 57.7 V), 5 (Voltage L-L V @ 100 V), 11.5 (Voltage L-N V @ 230 V), 20 (Voltage L-L V @ 400 V), 47 (Frequency) Hz |
| Series | ND20LITE |
| Approvals | CE, EN 61000-6-2, EN 61000-6-4, EN 61010-1 |
