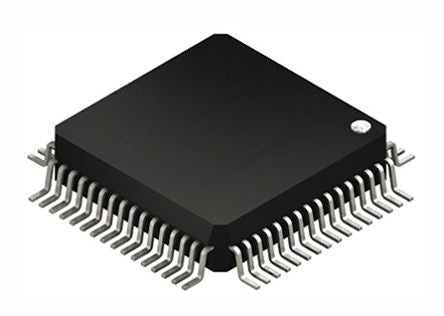

Silicon Labs C8051F021-GQ, 8bit 8051 Microcontroller, 25MHz, 64 kB Flash, 64-Pin TQFP [C8051F021-GQ]; 526-9052
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | C8051F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 25MHz |
| RAM Size | 4.352 kB |
| Number of PWM Units | 5 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.7 → 3.6 V |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 10mm |
| ADCs | 8 x 12 bit |
| Width | 10mm |
| Number of UART Channels | 2 |
| Pulse Width Modulation | 5(PWM/CCA) |
| Number of Timers | 5 |
| Number of I2C Channels | 1 |
| ADC Resolution | 12bit |
| Instruction Set Architecture | CISC |
| Minimum Operating Temperature | -40 °C |
| Timers | 5 x 16 bit |
| Dimensions | 10 x 10 x 1.05mm |
| Program Memory Type | Flash |
| Height | 1.05mm |
| Timer Resolution | 16bit |
