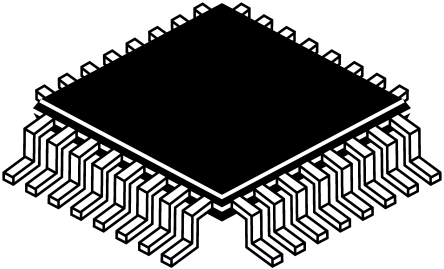

Silicon Labs C8051F350-GQ, 8bit 8051 Microcontroller, 50MHz, 8 kB Flash, 32-Pin LQFP [C8051F350-GQ]; 526-9298
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | C8051F |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 768 B |
| Number of PWM Units | 3 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.7 → 3.6 V |
| Instruction Set Architecture | CISC |
| Height | 1.45mm |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Timer Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 24bit |
| Number of I2C Channels | 1 |
| Number of Timers | 4 |
| Number of UART Channels | 1 |
| Timers | 4 x 16 bit |
| Dimensions | 7 x 7 x 1.45mm |
| Width | 7mm |
| Pulse Width Modulation | 3(PWM/CCA) |
| Maximum Operating Temperature | +85 °C |
| ADCs | 8 x 24 bit |
| Length | 7mm |
