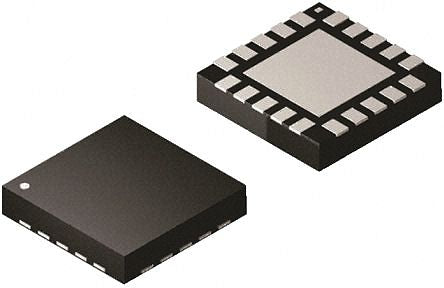

Silicon Labs C8051F392-A-GM, 8bit 8051 Microcontroller, 50MHz, 16 kB Flash, 20-Pin QFN [C8051F392-A-GM]; 169-0149
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | C8051F |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 20 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 1 kB |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3 V |
| Height | 0.85mm |
| Timer Resolution | 16bit |
| ADCs | 1 (16 x 10 bit) |
| Length | 4mm |
| Maximum Operating Temperature | +105 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | Pipelined |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Number of I2C Channels | 3 |
| Number of Timers | 6 |
| Number of UART Channels | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (3 x 16 bit) |
| Dimensions | 4 x 4 x 0.85mm |
| Timers | 6 x 16 bit |
| Width | 4mm |
| PWM Channels | 3 |
