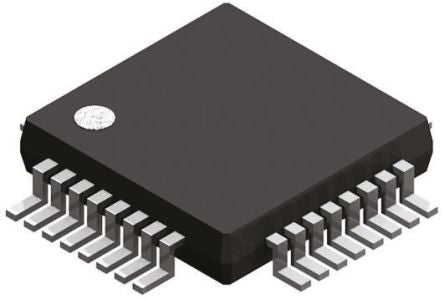

Silicon Labs C8051F560-IQ, 8bit 8051 Microcontroller, 50MHz, 32 kB Flash, 32-Pin QFP [C8051F560-IQ]; 168-9913
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | C8051F |
| Package Type | QFP |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | 8051 |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 50MHz |
| RAM Size | 2.304 kB |
| Number of PWM Units | 2 |
| ADC Channels | 32 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.25 V |
| Number of Timers | 4 |
| Number of I2C Channels | 1 |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 8 → 11 bit, 16 bit |
| Instruction Set Architecture | Harvard |
| Number of CAN Channels | 1 |
| Width | 7mm |
| Number of LIN Channels | 1 |
| Height | 1.45mm |
| Timer Resolution | 16bit |
| ADCs | 1(32 x 12 bit) |
| Length | 7mm |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +125 °C |
| Pulse Width Modulation | 1(16 bit), 1(8 → 11 bit) |
| Timers | 4 x 16 bit |
| Dimensions | 7 x 7 x 1.45mm |
| Program Memory Type | Flash |
