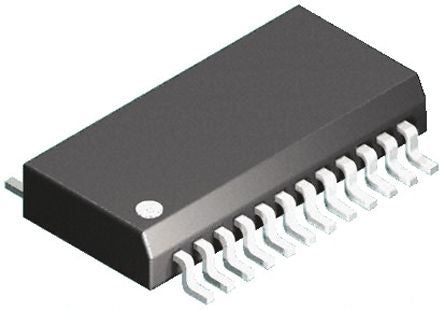

Silicon Labs C8051F850-C-GU, 8bit CIP-51 Microcontroller, 25MHz, 8 kB Flash, 24-Pin QSOP [C8051F850-C-GU]; 169-0064
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | C8051F |
| Package Type | QSOP |
| Mounting Type | Surface Mount |
| Pin Count | 24 |
| Device Core | CIP-51 |
| Data Bus Width | 8bit |
| Program Memory Size | 8 kB |
| Maximum Frequency | 25MHz |
| RAM Size | 512 B |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 2.2 → 3.6 V |
| PWM Channels | 3 |
| Width | 3.9mm |
| Timers | 4 x 16 bit |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 8.65 x 3.9 x 1.5mm |
| Length | 8.65mm |
| ADCs | 1 (16 x 12 bit) |
| Timer Resolution | 16bit |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (3 x 16 bit) |
| Number of I2C Channels | 1 |
| Number of Timers | 4 |
| Number of UART Channels | 1 |
| Number of ADC Units | 1 |
| Instruction Set Architecture | Pipelined |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| Height | 1.5mm |
| ADC Resolution | 12bit |
