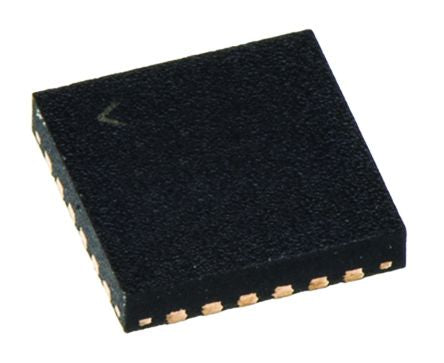

Silicon Labs EFM32HG309F64G-A-QFN24, 32bit ARM Cortex M0+ Microcontroller, 25MHz, 64 kB Flash, 24-Pin QFN [EFM32HG309F64G-A-QFN24]; 872-7104
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | EFM32HG |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 24 |
| Device Core | ARM Cortex M0+ |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 25MHz |
| RAM Size | 8 kB |
| USB Channels | 1 |
| Number of PWM Units | 3 |
| ADC Channels | 2 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 1.98 → 3.8 V |
| Number of I2C Channels | 1 |
| Number of Timers | 3 |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Number of UART Channels | 2 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 3 (3 Channel) |
| Dimensions | 5 x 5 x 0.85mm |
| Number of USART Channels | 2 |
| Width | 5mm |
| PWM Channels | 3 |
| Height | 0.85mm |
| Timer Resolution | 16bit |
| ADCs | 1(2 x 12 bit) |
| Length | 5mm |
| Timers | 3 x 16 bit |
