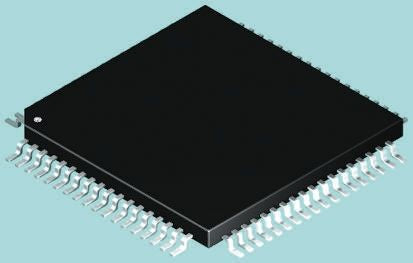

Silicon Labs SIM3C157-B-GQ, 32bit ARM Cortex M3 Microcontroller, 80MHz, 128 kB Flash, 80-Pin TQFP [SIM3C157-B-GQ]; 761-7894
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | SiM3 |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | ARM Cortex M3 |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 80MHz |
| RAM Size | 32 kB |
| Number of PWM Units | 1 |
| ADC Channels | 2 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 1.8 → 3.6 V |
| Number of Timers | 2 |
| Number of I2C Channels | 2 |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Length | 12mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Number of UART Channels | 2 |
| Width | 12mm |
| Number of USART Channels | 2 |
| Timers | 2 x 32 bit |
| Dimensions | 12 x 12 x 1.05mm |
| PWM Channels | 2 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 x 16 bit (CCP) |
| ADCs | 2 x 12 bit |
| Height | 1.05mm |
| Timer Resolution | 32bit |
