SKF TMHP 10E
SKF TMHP 10E
SKF TMHP 10E
SKF TMHP 10E

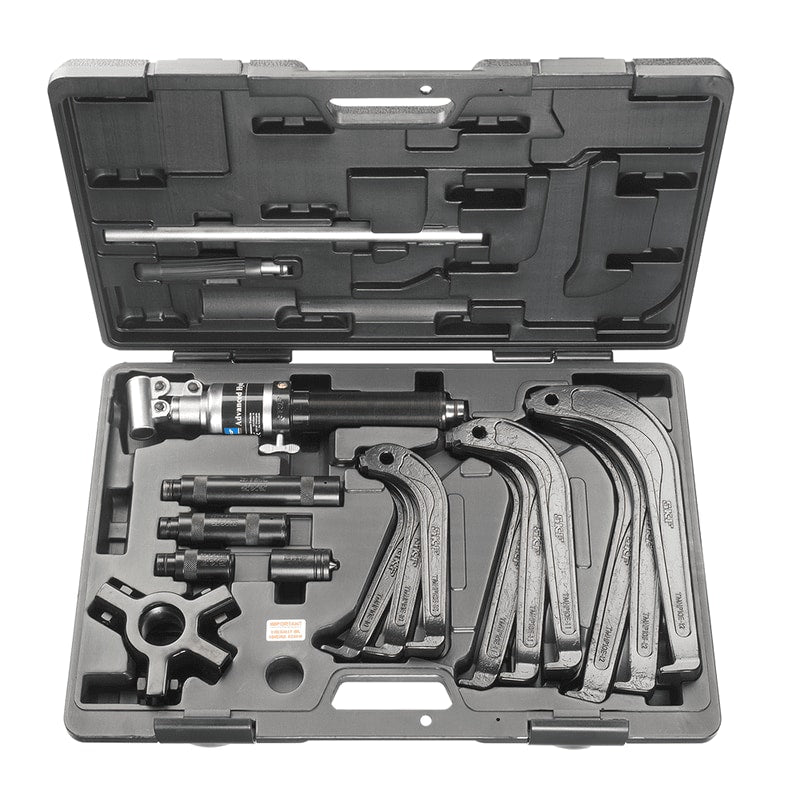

Hydraulic jaw puller kit

Tên nhà sản xuất: SKF
0₫ - 0₫
0₫
0₫ - 0₫
0₫
📩 Liên hệ để có giá tốt: CV@chanhvinh.com

Effortless bearing dismounting up to 100 kN

The SKF TMHP 10E jaw puller kit is equipped with a hydraulic spindle, which facilitates effortless bearing dismounting up to 100 kN (11.2 ton US). The versatile puller kit includes three different arm sizes and can be assembled as a two-arm puller or a three-arm puller depending on the space and demand of the application.

  • High load rating of 100 kN (11.2 ton US) makes the puller suitable for a variety of dismounting jobs
  • The 3 different arm sizes, with a maximum effective arm length of 200 mm (7.9 in), make the TMHP 10E suitable for use in a wide range of applications
  • The self-locking arms minimise the risk of the puller slipping from the application when under load
  • Hydraulic spindle facilitates effortless dismounting
  • The hydraulic spindle is equipped with a safety valve, which minimises the risk of puller overload by limiting the applied force to 100 kN (11.2 ton US)
  • Long stroke of hydraulic spindle, 80 mm (3.1 in), facilitates dismounting in one operation
  • Extension pieces of the hydraulic spindle allow quick adaptation to pulling length
  • The spring-loaded centre point of the hydraulic spindle allows easy puller centring minimizing the risk of shaft damage
SPARE PARTS
Designation Description
TMHS 100 Advanced hydraulic spindle, 100 kN
TMHS 100-1 Advanced hydraulic spindle, 100 kN, spindle only
TMHS 8T Set of extension pieces and nose piece for TMHS 100 and 8E
TMHP 10E-5 Four arm stand with bolts and nuts for TMHP 10E and TMHC 110E
TMHP 10E-10 Arm for TMHP 10E and TMHC 110E, 190 mm long
TMHP 10E-11 Arm for TMHP 10E, 240 mm long
TMHP 10E-12 Arm for TMHP 10E, 285 mm long
