Couplings Gear coupling, single and double engagement, cover
Tên nhà sản xuất:
SKF
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫

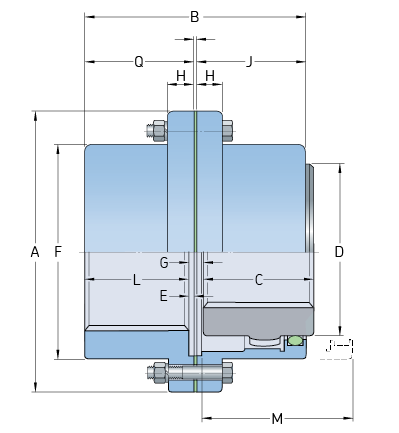

| TECHNICAL DATA | |
|---|---|
| Size | 40 GC |
| Power per 100 r/min (kW) | 321 |
| Power per 100 r/min (HP) | 430.29 |
| Rated torque (Nm) | 30609 |
| Rated torque (lbft) | 22576.04 |
| Speed Max. (r/min) | 3600 |
| Bore diameter Min. (mm) | 64 |
| Bore diameter Min. (in) | 2.52 |
| Bore diameter Max. (mm) | 160 |
| Bore diameter Max. (in) | 6.3 |
| A (mm) | 318 |
| A (in) | 12.52 |
| B (mm) | 248 |
| B (in) | 9.76 |
| C (mm) | 121 |
| C (in) | 4.76 |
| D (mm) | 210 |
| D (in) | 8.27 |
| F (mm) | 245 |
| F (in) | 9.65 |
| H (mm) | 28.4 |
| H (in) | 1.12 |
| J (mm) | 111 |
| J (in) | 4.37 |
| M (mm) | 145 |
| M (in) | 5.71 |
| Gap G Min. (mm) | 6 |
| Gap G Min. (in) | 0.24 |
| Lubricant mass (kg) | 0.91 |
| Lubricant mass (lbs) | 2.01 |
| Coupling mass without bore and min. DBSE (kg) | 97 |
| Coupling mass without bore and min. DBSE (lbs) | 213.85 |
