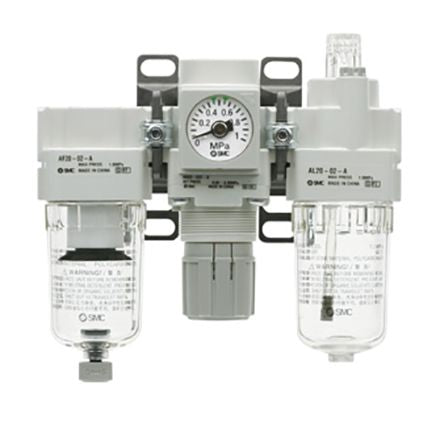

SMC G 1/2 FRL Assembly, 5μm Filtration Size [AC40-F04G-B]; 885-5943
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | AC40 |
| Port Connection | G 1/2 |
| Filtration Size | 5µm |
| Integrated Pressure Gauge | With Pressure Gauge |
| Pressure Gauge Port Size | G 1/8 |
| Minimum Ambient Operating Temperature | -5°C |
| Port Connection Thread Size | 42767 |
| Port Connection Thread Standard | G |
| Maximum Operating Pressure | 1 MPa |
| Ambient Operating Temperature Range | -5 → +60°C |
| Maximum Process Operating Temperature | 60°C |
| Minimum Process Operating Temperature | -5°C |
| Bowl Material | Polycarbonate |
| Pressure Setting Range | 0.05 → 0.7MPa |
| Pressure Gauge Port Thread Standard | G |
| Maximum Ambient Operating Temperature | 60°C |
| Process Operating Temperature Range | -5 → +60°C |
| Maximum Pressure Setting | 0.7MPa |
| Minimum Pressure Setting | 0.05MPa |
| Proof Pressure | 1.5MPa |
| Pressure Gauge Port Thread Size | 42948 |
