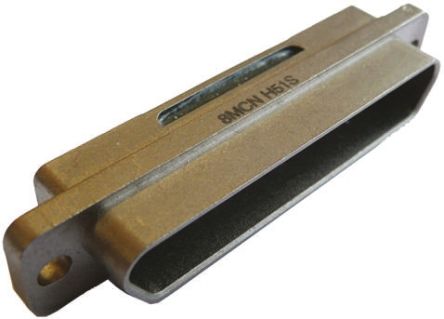

Souriau MicroComp Series 2mm Pitch Straight Micro Miniature D Crimp Connector, Socket, 51 Pin [8MCNH51S011B]; 687-5585
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 51 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.0mm |
| Termination Method | Crimp |
| Current Rating | 2.5A |
| Housing Material | Glass Fibre Reinforced Polymer |
| Length | 48.55mm |
| Width | 11.11mm |
| Depth | 8.92mm |
| Dimensions | 48.55 x 11.11 x 8.92mm |
| Series | microComp |
| Contact Size | 26 |
| Minimum Operating Temperature | -55.0°C |
| Contact Plating | Gold |
| Maximum Operating Temperature | +175°C |
| Contact Material | Copper Alloy |
