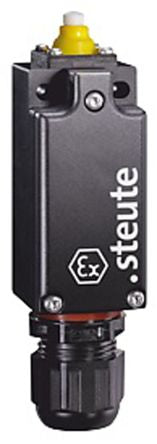

IP66, IP67, IP69 Positive Break, Slow Action Limit Switch Plunger with Collar Glass-Fibre, Thermoplastic, 2NC, 400V [Ex ES 97 W 02 -60 c]; 136-5920
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Actuator Type | Plunger with Collar |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 2NC |
| IP Rating | IP66, IP67, IP69 |
| Maximum Current | 0.166666666666667 |
| Housing Material | Glass-Fibre, Thermoplastic |
| Maximum AC Voltage | 400V |
| Connection Type | Cable |
| Series | Ex 97 |
| Contact Type | Positive Break, Slow Action |
| Terminal Type | Screw |
| Length | 787.4mm |
| Width | 2057.4mm |
| Hazardous Area Certification | IECEx |
| Depth | 812.8mm |
| Minimum Operating Temperature | -60°C |
| Dimensions | 787.4 x 2057.4 x 812.8 mm |
| Mechanical Life Minimum | >1000000 operations |
| Mounting Orientation | Vertical |
| Maximum Operating Temperature | +55°C |
| Standards Met | EAC, EN 50047, EN 60079-0, EN 60079-1, EN 60079-14, EN 60079-31, EN 60079-7, EN 60947-5-1, EN ISO 13849-1, EN ISO 14119, EX II 2D Ex tb IIIC T80 °C Db, EX II 2G Ex db eb IIC T6 Gb, Ex tb IIIC T80 °C Db, IECEx Ex db eb IIC T6 Gb |
