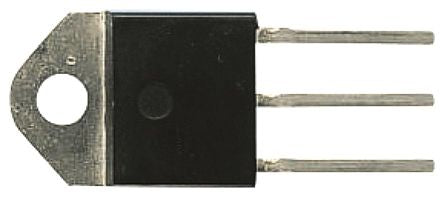

STMicroelectronics, BTW68-1200RG, Thyristor, 1200V 19A, 50mA 3-Pin, TOP3 [BTW68-1200RG]; 178-1397
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Rated Average On-State Current | 19A |
| Thyristor Type | SCR |
| Package Type | TOP3 |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 420A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 50mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 75mA |
| Pin Count | 3 |
| Length | 15.5mm |
| Width | 4.6mm |
| Height | 21.1mm |
| Dimensions | 15.5 x 4.6 x 21.1mm |
| Peak On-State Voltage | 2.1V |
| Repetitive Peak Forward Blocking Voltage | 600 → 1200V |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 20µA |
| Minimum Operating Temperature | -40 °C |
