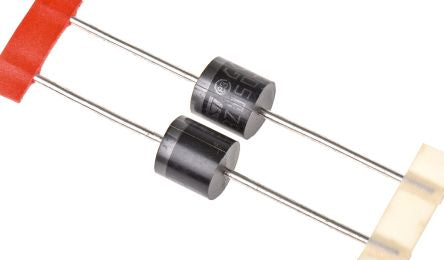

STMicroelectronics BZW50-39, Uni-Directional TVS Diode, 5000W, 2-Pin R 6 [BZW50-39]; 165-6693
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 90V |
| Minimum Breakdown Voltage | 43.3V |
| Mounting Type | Through Hole |
| Package Type | R 6 |
| Maximum Reverse Stand-off Voltage | 39V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 5000W |
| Maximum Peak Pulse Current | 667A |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +175 °C |
| Length | 9.1mm |
| Diameter | 9.1mm |
| Dimensions | 9.1 (Dia.) x 9.1mm |
| Maximum Reverse Leakage Current | 5µA |
| Test Current | 1mA |
