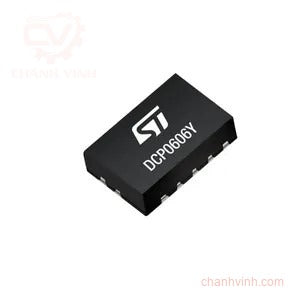

STMicroelectronics DCP0606QTRY, Step Down DC-DC Converter, 6A 11-Pin, QFN [DCP0606QTRY]; 527-113

The STMicroelectronics high efficiency monolithic step-down synchronous switching regulator designed to deliver up to 6 A continuous current. The IC operates from 2.9 V to 6 V input voltage. It features low-resistance integrated N-channel MOSFETs and diode emulation working mode for optimum efficiency over all the loading range. The integrated 0.6 V reference allows the regulation of output voltages with ± 1.5% accuracy over temperature variations. The switching frequency is externally adjustable between 1.8 MHz and 4 MHz.

Available in QFN 2 x 3 mm with 11 leads with wettable flanks

AEC-Q100 Grade 1 qualified

Selectable switching frequency from 1.8 to 4 MHz with dithering

External synchronization with programmable phase shift
