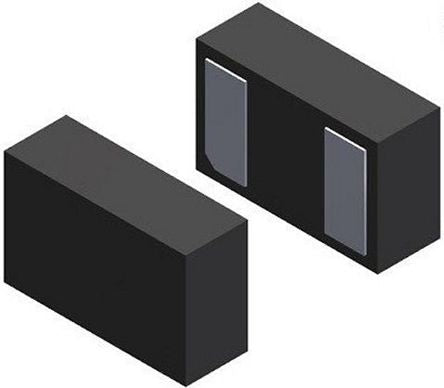

STMicroelectronics ESDA13P70-1U1M, Uni-Directional TVS Diode, 1300W, 2-Pin QFN1610 [ESDA13P70-1U1M]; 110-6380
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 20V |
| Minimum Breakdown Voltage | 12.5V |
| Mounting Type | Surface Mount |
| Package Type | QFN1610 |
| Maximum Reverse Stand-off Voltage | 12V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1300W |
| Maximum Peak Pulse Current | 70A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 1.7mm |
| Maximum Reverse Leakage Current | 200nA |
| Test Current | 1mA |
| Width | 1.1mm |
| Height | 0.55mm |
| Dimensions | 1.7 x 1.1 x 0.55mm |
