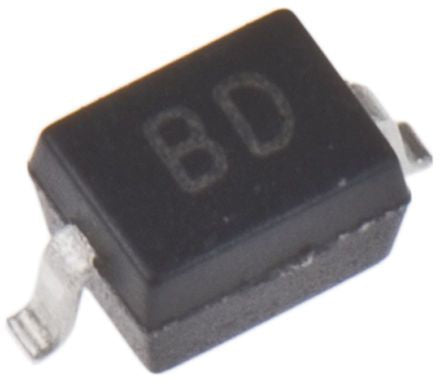

STMicroelectronics ESDA8V2-1J, Uni-Directional ESD Protection Diode, 500W, 2-Pin SOD-323 [ESDA8V2-1J]; 145-9745
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 20V |
| Minimum Breakdown Voltage | 8.2V |
| Mounting Type | Surface Mount |
| Package Type | SOD-323 |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 500W |
| Maximum Peak Pulse Current | 25A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Capacitance | 250pF |
| Length | 1.8mm |
| Dimensions | 1.8 x 1.45 x 1.07mm |
| Height | 1.07mm |
| Maximum Reverse Leakage Current | 500nA |
| Test Current | 1mA |
| Width | 1.45mm |
