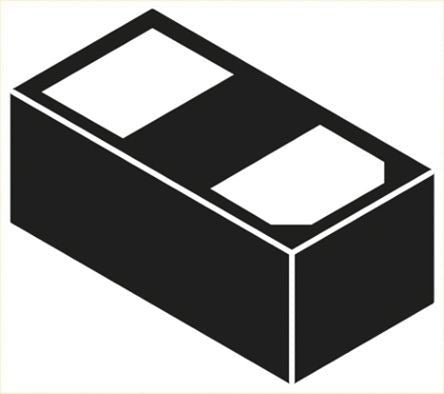

STMicroelectronics ESDALC20-1BF4, Bi-Directional ESD Protection Diode, 90W, 2-Pin 0201 (0603M) [ESDALC20-1BF4]; 145-8942
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Bi-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 37V |
| Minimum Breakdown Voltage | 22V |
| Mounting Type | Surface Mount |
| Package Type | 0201 (0603M) |
| Maximum Reverse Stand-off Voltage | 20V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 90W |
| Maximum Peak Pulse Current | 16A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +150 °C |
| Width | 0.33mm |
| Length | 0.63mm |
| Capacitance | 11.5pF |
| Height | 0.32mm |
| Dimensions | 0.63 x 0.33 x 0.32mm |
| Maximum Reverse Leakage Current | 10nA |
| Test Current | 1mA |
