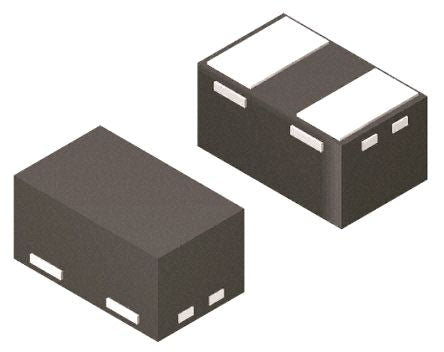

STMicroelectronics ESDAXLC6-1MY2, Uni-Directional TVS Diode, 12W, 2-Pin μQFN [ESDAXLC6-1MY2]; 168-8035
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Minimum Breakdown Voltage | 6V |
| Mounting Type | Surface Mount |
| Package Type | μQFN |
| Maximum Reverse Stand-off Voltage | 3V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 12W |
| Maximum Peak Pulse Current | 2.8A |
| ESD Protection | Yes |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Capacitance | 0.6pF |
| Length | 1.05mm |
| Dimensions | 1.05 x 0.65 x 0.45mm |
| Width | 0.65mm |
| Height | 0.45mm |
| Maximum Reverse Leakage Current | 100nA |
| Test Current | 1mA |
| ESD Voltage | 8kV |
